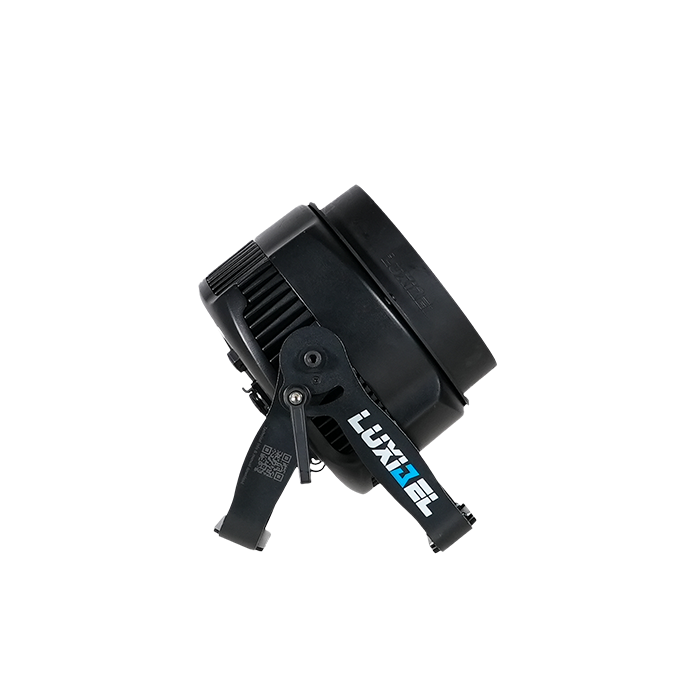

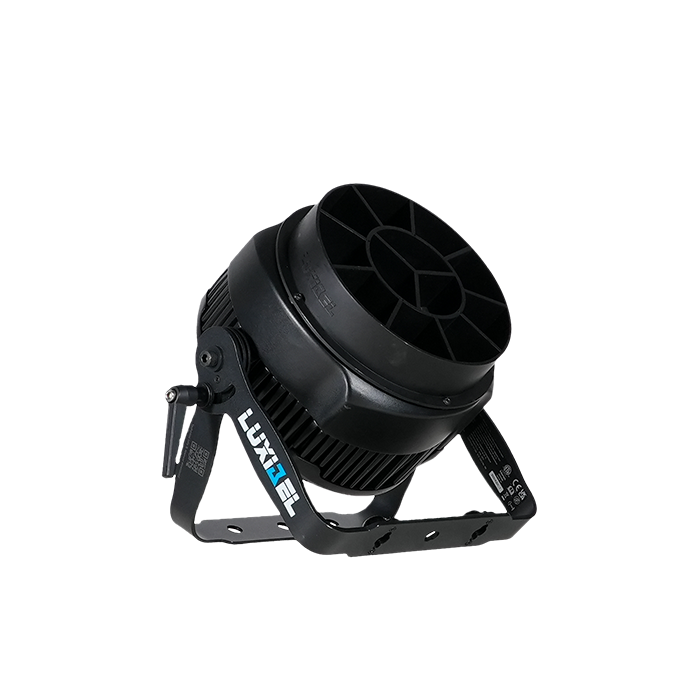

Introducing the B PAR180RGBW V2 - equipped with 12x15W RGBW LED lights set at a 25° angle, delivering vivid colors and smooth dimming capabilities.
What distinguishes the B PAR180RGBW V2 from other LED pars is its exceptional power-to-size ratio, positioning it as one of the most powerful options in the AV market. Additionally, its built-in humidity extractor and IP65 rating guarantee durability and sustained performance.
Your investment in the B PAR180RGBW V2 is fully supported by AED Rent with an extensive inventory of these lighting fixtures available for dry hire.
The B PAR180RGBW V2 stands as the ideal choice for any professional lighting setting, thanks to its unique accessories, especially designed for AV professionals.
| Dimensions (WxHxD) | 280 x 288 x 143 mm | 11.0 x 11.3 x 5.6 in |
| Packaging dimensions (WxHxD) | 280 x 310 x 280 mm | 11.0 x 12.2 x 11.0 in |
| Packaging dimensions (4 pieces) (WxHxD) | 575 x 320 x 575 mm | 22.6 x 12.6 x 22.6 in |
| Net weight | 4.7 kg | 10.4 lb |
| Gross weight | 5.7 kg | 12.6 lb |
| Gross weight (4 pieces) (WxHxD) | 24 kg | 53 lb |
| Hanging | 1 omega bracket with 2x ¼ turn quick-lock fastners & 1 M12 hole in the middle of the omega brackets |
| Standing | Double bracket – adjustable opening angle |
| 2nd suspension / safety wire | 1x moulded eye on the housing to pass a safety wire or carabiner |
| LED Sources | 12x 15W LED RGBW |
| Beam angle | 25° (fixed) |
| Strobe | 0 - 20 Hz |
| Dimming curves | 3 |
| Colors | Red, Green, Blue and White | 8-bit color mix |
| Light output RGBW @ 2m | 6210 lux |
| Light output RGBW @ 4m | 1523 lux |
| Light output RGBW @ 6m | 622 lux |
| Menu control | via TFT display with 4 buttons |
| Control | DMX512, manual, master/slave |
| Dimmer mode | 0 - 100% - 16 bit |
| In/link | XLR 5 pin |
| DMX mode | 4/6/8/9/15 channels |
| Tilt Movement | One hand tilt locking |
| Fixture rated power | 165W |
| LED engine | 12 x 15W SMD LED | RGBW 4 in 1 |
| Input power | 100-240V ~ 50/60Hz - Auto switching power supply |
| In/Link | PowerCON TRUE1 | max link current |
| Refresh rate | 1.200 Hz |
| Power factor | 0.93 |
| Cooling | Electronical heat control (no fans) |
| IP Rating | IP65 |
