Multi-color Softlight
Discover more


The XPA-400C is a compact yet high-powered RGBWWLC LED panel, ideal for applications requiring both power and compactness.

This device features an intuitive control interface, including a 4-button menu and an LCD display for easy navigation. It also features an 8-button programmable manual CCT bank and 3 versatile rotary/push buttons for precise manual adjustments.

A highlight of the XPA-400C is its calibrated LEE filter library, which incorporates over 60 popular colors. The firmware can be conveniently updated via USB, allowing for simultaneous updates in up to 10 DMX linked devices.

The fixture offers 9 DMX Modes, which include 3 B Expo 100MWW compatibility modes.


380W LED
9 modes
Firmware updates
LEE filter color bank
Low Voltage Input
405 x 129 x 418 mm
16.0 x 5.1 x 16.5 in
12.8 kg
28.2 lbs



Nett weight 12.8 kg | 28.2 lbs
Gross weight 13.6 kg | 29.9 lbs
Dimensions (WxHxD) 405 x 418 x 129 mm | 16.0 x 16.5 x 5.1 in
Packaging dimensions (WxHxD) 565 x 500 x 250 mm | 22.2 x 19.7 x 9.9 in

Mounting options

Hanging 1 omega bracket with 2x 1/4 turn quick-lock fasteners & 1 M12 hole in the middle of the omega brackets
Standing on the bracket
2nd suspension / safety wire 1x moulded eye on the housing to pass a safety wire or carabiner

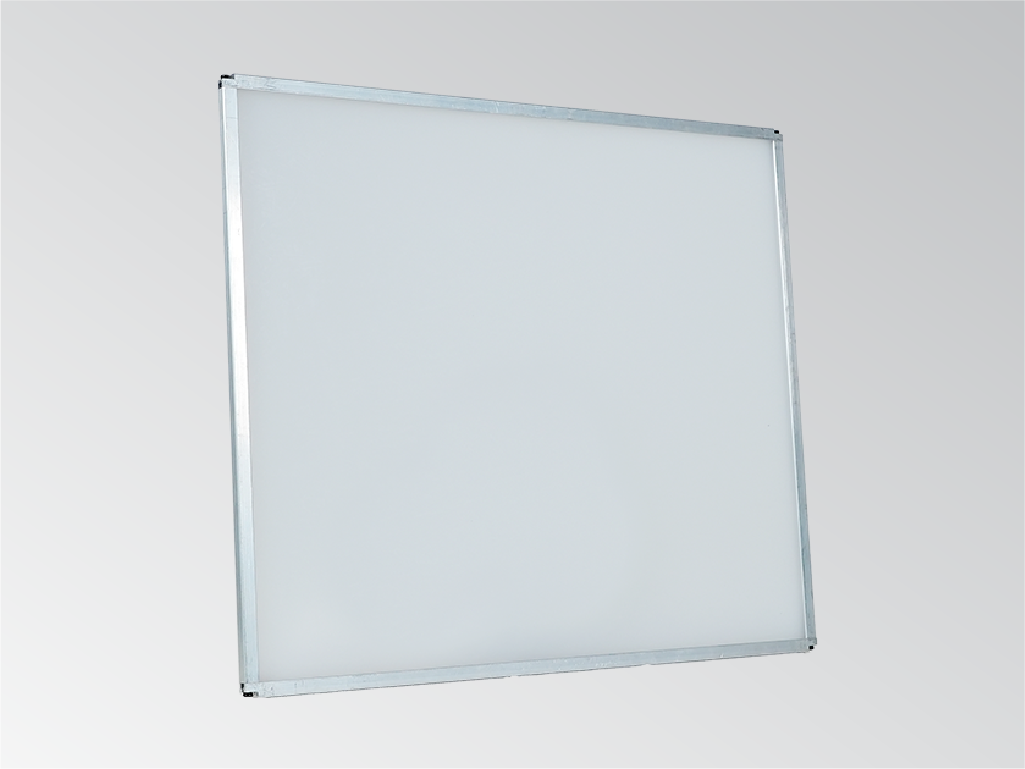

Beam angle 140° (with medium diffuser)
Strobe 0-20 Hz
Dimming curves 4
Colors Red, Green, Blue, Warm White, Lime & Cyan
CRI 96 Ra


Menu control via OLED display with 4 buttons

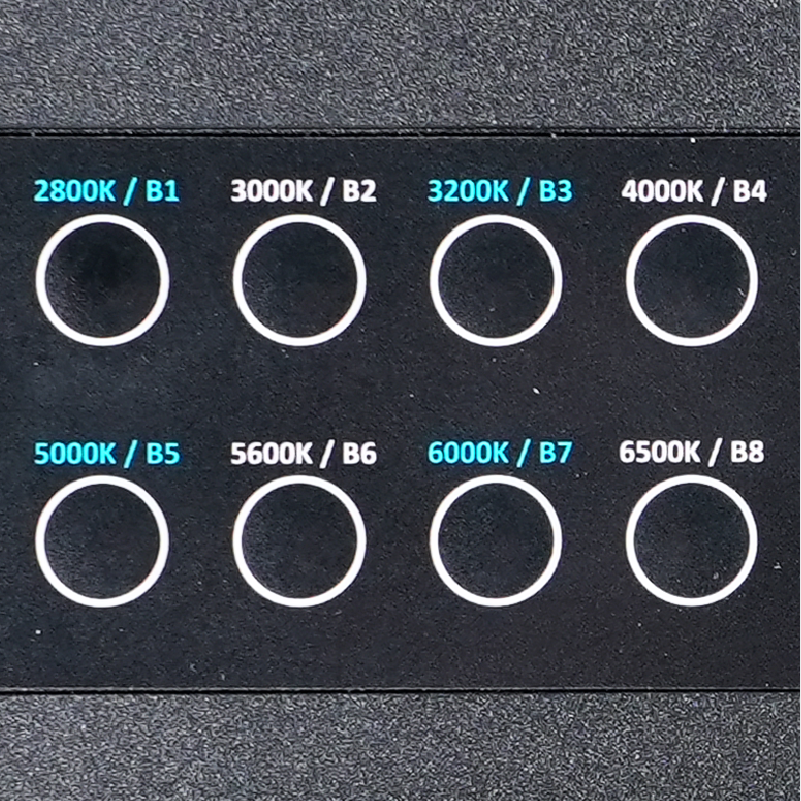

8 Direct Kelvin push buttons pre-programmed and programmable
Control DMX512, manual, master/slave
Dimmer mode 0 - 100% - 8 bit
In/Link XLR 5-pin
DMX mode 1/4/5/6/13/18/19/31/34 channels
Fan mode Auto, Silent, High
Tilt movement One hand tilt locking
LEE Filter Color Bank 75 pre-programmed Kelvin values in the menu and more than 60 pre-programmed LEE filters in the menu


Fixture rated power 380W
LED engine RGBWWLC LED engine
Input power AC 100 - 240V ~ 50/60 Hz - Auto switching power supply
In/Link PowerCon TRUE1 - max. link current 10A
Low Voltage Input 24/36V
USB connector for software upload
Power Factor 0,95


IP Rating IP20
Show more
