XFR-140C

Small high power full color LED fresnel
Discover more
AboutFeaturesSpecsDownloadsAccessories

XFR-140C

The XFR-140C stands out as a versatile and robust RGBL fresnel light, perfect for a range of lighting needs. Its compact design belies its power, offering an adjustable zoom ranging from a narrow 21° to a wide 85°, complemented by a 4-leaf barndoor for precise light shaping.

This fresnel light is not only capable of producing full, vibrant colors but is also expertly engineered to match the white color temperatures of Luxibel’s renowned B EXPO series, including the 100MWW, 200MWW, and 200MCW. This versatility is further enhanced by its 6 DMX modes, catering to a variety of lighting scenarios.

A standout feature of the XFR-140C is its inclusion of a convenient USB slot, a significant upgrade that streamlines the software update process. This innovation allows for simultaneous updates in up to 10 DMX-linked fixtures, greatly simplifying maintenance and ensuring all connected lights are uniformly updated.

Another notable advancement in the XFR-140C is its calibrated LEE filter library. This feature provides users with a range of commonly used colors in the industry, making it easier to achieve the desired hue and intensity for any project.

In summary, the XFR-140C is not just a lighting fixture; it’s a comprehensive solution that combines compactness, power, versatility, and ease of use. Whether for stage, studio, or architectural lighting, it’s designed to deliver exceptional performance, making it an essential tool for lighting professionals seeking reliability and creative freedom.

Features

120W LED RGBL
> 90
21°-85°

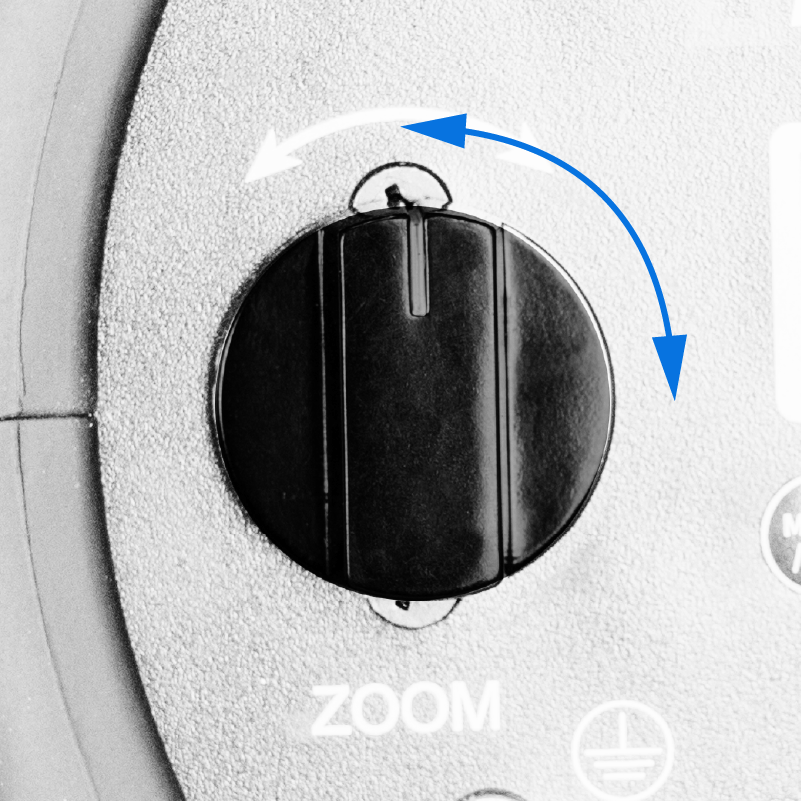

manual zoom
6 modes
298 x 327 x 2271 mm
5,48 kg

Specs

Physical

Dimensions (WxHxD) 29.8 x 32.7 x 27.1 cm | 11.7 x 12.9 x 10.7 in
Packaging dimensions (WxHxD) 41 x 35 x 35 cm | 16 x 13.7 x 13.7 in
Nett weight 5.48 kg | 12.08 lbs
Gross weight 6.08 kg | 13.4 lbs

Mounting options

Hanging 3x M12 hole
Standing N/A
2nd suspension / safety wire 1x eye on the back of the fixture to pass a safety wire or carabiner

Optical

Beam angle 21°-85°
Colors RGBL
Refresh rate adaptable 600 Hz - 4.000 Hz
Strobe 0-20 Hz
CRI 90.4 Ra
TM30 Rf = 95 - Rg = 101

Control

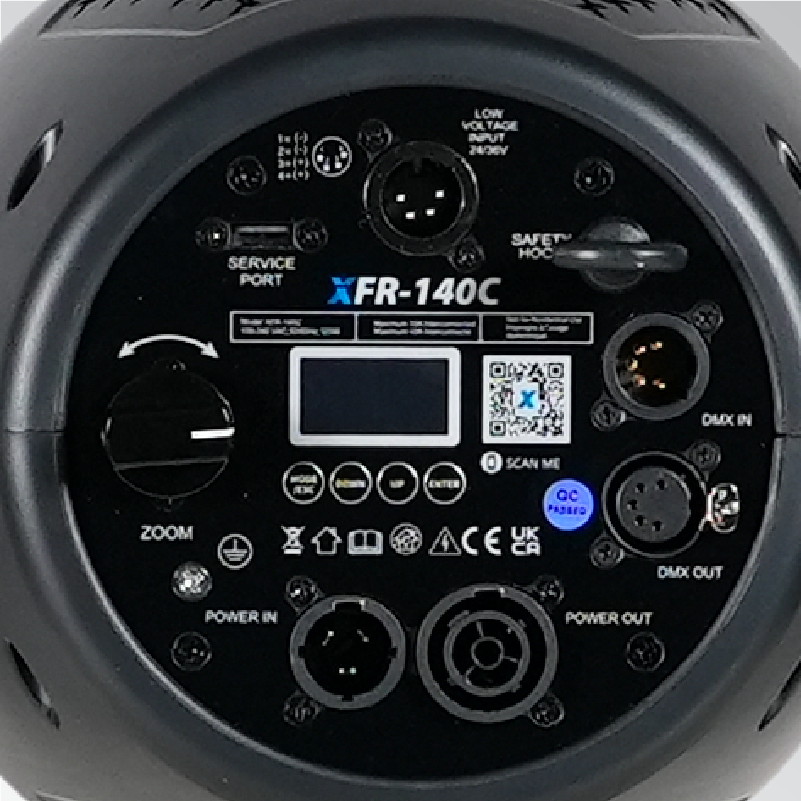

Menu control TFT display with 4 buttons
Control DMX512, manual
In/Link XLR 5-pin
DMX mode 1/4/5/11/12/16 channels
Fan mode Auto, Silent, High
Dimmer mode 16-bit dimming
Movement One-hand locking
LEE Filter Color Bank 10 pre-programmed Kelvin values in the menu and more than 60 pre-programmed LEE filters in the menu

Electrical

Fixture rated power 120W
LED engine 120W RGBL LED engine
Input power AC 100 - 240V ~ 50/60 Hz - Auto switching power supply
In/Link PowerCon TRUE1 - max. link current 10A
Low Voltage Input 24/36V
USB connector for software upload
Power Factor 0,96

Environmental

Cooling Heat sink + air cooling
IP Rating IP20
Show more
