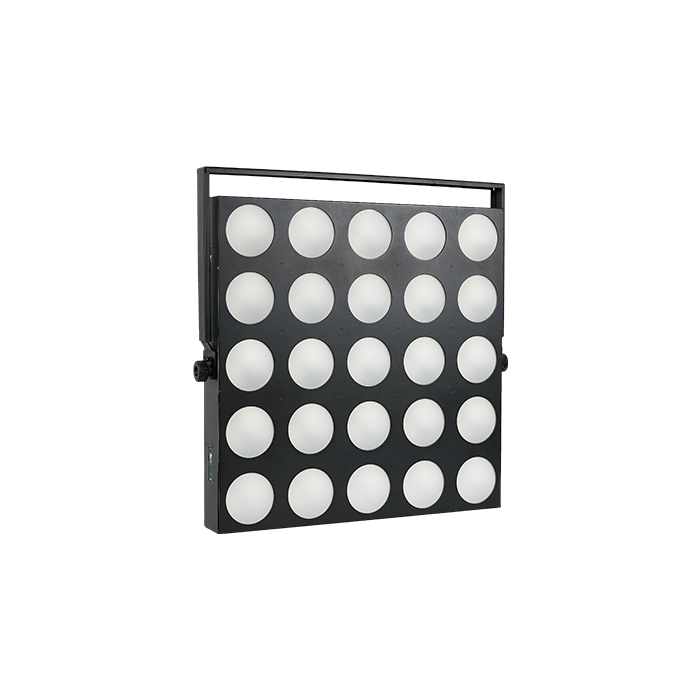

Presenting the B 25 – a compact and highly adaptable matrix lighting unit engineered to create remarkable and unique visual experiences. This unit is equipped with 25x 10W RGB Amber Matrix LEDs, making it the first of its kind in the 5x5 matrix category to incorporate removable frost filters. The amber LED chips in the B 25 produce an exceptional glow, setting it apart from standard 'RGB only' units with its distinctive luminosity.
The B 25 has been meticulously designed for maximum versatility. It can be flown, stacked, or positioned both horizontally and vertically, catering to a wide range of design needs. Its sleek profile renders it ideal for indoor settings, where its impactful lighting can truly shine.
The B 25 is suitable for a diverse array of events and applications, and guaranteed to enhance the visual appeal of any space it illuminates.
| Dimensions (WxHxD) | 580 x 580 x 126 mm | 22.8 x 22.8 x 5.0 in |
| Packaging dimensions (WxHxD) | 630 x 630 x 170 mm | 24.8 x 24.8 x 6.7 in |
| Packaging dimensions (2 pieces) (WxHxD) | 710 x 710 x 370 mm | 28.0 x 28.0 x 14.6 in |
| Nett weight | 14,5 kg | 32.0 lb |
| Gross weight | 15 kg | 33.0 lb |
| Gross weight (2 pieces) | 30 kg | 66.1 lb |
| Hanging | Adjustable bracket with fixing knobs |
| Fixture array | Interlocking slots & receivers | Arrayable with Luxibel B 5 |
| 2nd suspension / safety wire | 1x eye on the back of the fixture to pass a safety wire or carabiner |
| Beam angle | Fixed angle wash |
| Frost system | Black and milk (removable) |
| Colors | RGB + Amber |
| Strobe | 0 - 20 Hz |
| Pixel control | Each cell individually |
| Menu control | via TFT display with 4x touch buttons |
| In/Link | XLR 5/3 pin |
| Control | DMX512, master/slave |
| DMX mode | 1/4/5/25/75/100/105 channels |
| Dimming curves | 4 |
| Digital turning of the B 25 | 0°-90°-180°-270° |
| Fixture rated power | 300W |
| Input power | 100 - 240V ~ 50/60 Hz - Auto switching power supply |
| LED engine | 25x 10W RGBA |
| In/Link | PowerCon TRUE1 - max. link current 10A |
| Power factor | 0.95 |
| Cooling | Forced air cooling |
| IP Rating | IP20 |
